Product brand:Joseph
Place of origin:China
Product Name: Specialized synthetic Lithium-exchanged forms of LSX type zeolite (LiLSX zeolite) for production of rich oxygen

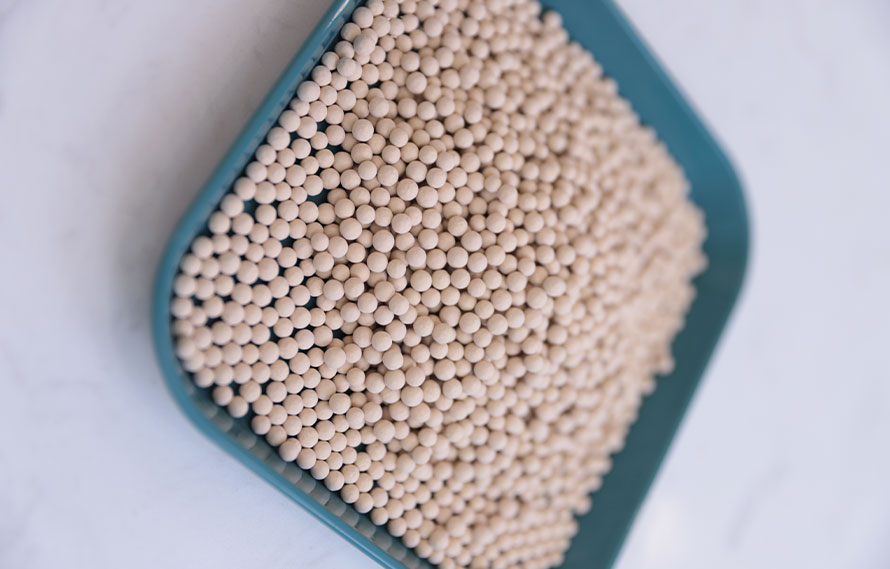

Product Introduction：This product belongs to crystalline silicon aluminate, it's a kind of micro-pink spherical product, a special molecular sieve/zeolite for rich-oxygen production,applicable for PSA(VPSA) device, use air as raw material, seperating for rich-oxygen, also known as Lithium molecular sieve/zeolite. Under normal or pressurized conditions,it has the performance of preferentially adsorbing nitrogen in air. Fill this product in PSA(VPSA) device,the circulating process of adsorption and desorption is realized through the control of program-controlled valve, so as to separate the air and make rich-oxygen.
Technical Characteristics：Using our new developed high efficiency rich-oxygen molecular sieve/zeolite,it’s low investment, energy saving, power consumption per unit oxygen enrichment is 0.35-0.4kwh/Nm3O2
Oxygen Purity：25%-95%. The device has strong adaptability, and the output is adjustable under the rated production capacity of 25-110%. The rich-oxygen after purification treatment can fully meet medical-use oxygen standard. It has the advantage of short process, high oxygen yield, highly automation, convenient for switch on&off, initiating time less than half an hour.
Applications：Widely used in metallurgy, chemical industry, oxygen welding and cutting, medical and sewage treatment.
Technical Specification(TDS)：
|
Analyst Item |
Type No. |
JZOX100 |
JZOX101 |
JZOX102 |
|
Specification |
Φ0.80mm~1.20mm |
Φ1.30mm~1.70mm |
Φ1.40mm~2.40mm |
|
|
Static Adsorption Capacity (1 atm, 25℃) |
Nitrogen, ml/g |
≥23.0 |
≥23.0 |
≥23.0 |
|
Oxygen, ml/g |
Report |
Report |
Report |
|
|
Nitrogen: Oxygen |
≥6.2 |
≥6.2 |
≥6.2 |
|
|
Crush Strength |
Mean strength, N/particle |
≥3.0 |
≥15 |
≥25 |
|
Coefficient of Variation |
≤0.40 |
≤0.40 |
≤0.40 |
|
|
Abrasion rate (%) |
≤0.50 |
≤0.50 |
≤0.50 |
|
|
Bulk Density (tapped) kg/m3 |
610~630 |
610~630 |
610~630 |
|
|
Residual Water(575℃1hr) wt% |
≤0.5 |
≤0.5 |
≤0.5 |
|
|
Particle Size Distribution % |
≥95 |
≥95 |
≥95 |
|
|
Note: the particle size can be customized per your requirements! |
||||
Packaging :Galvanized steel drum with inner plastic bag, vacuum sealed packing, 125Kg/ drum.
Transportation: non-dangerous goods, but to avoid moisture during transportation, keep dry&sealed.
Storage: store in dry and ventilated place, not in the open air.
