Beta Molecular Seive/β Zeolite

Product brand:Joseph

Place of origin:China

Product Introduction
β zeolite is a type of zeolite with three-dimensional network of 12-ring pores. β zeolite has special characteristics with high silica-alumina ratio, and large ring pores. It is relatively stable under high temperature.

Product name: β-zeolite

Production introduction: β-zeolite is a kind of high Si02/Al2O3 ratio zeolites with three-dimensional twelve-membered rings, composed of double six-membered rings with two four-membered rings and four five-membered rings, main duct diameter is 0.56-0.75nm, with a high thermostability. β-zeolite only has duct, has no cages, so it is able to exchange all the cations. β-zeolite has a large absorptive capacity for cyclohexane n-hexane, water, each above 14%. Because of the duct feature, β-zeolite has a high selectivity of chain hydrocarbon in cracking reaction, if used in the petroleum hydrocarbon cracking process, can obtain high carbon low freezing-point cracking product. So β-zeolite has a good industrial application prospect in oil refining industry, it can significantly decrease the solidifying point of diesel oil, it's a new hydro cracking catalyst producing diesel oil with low solidifying point.

Adding modified β-zeolite into FCC catalyst can decrease the content of olefin in catalysts cracking reaction, and increase octane ratio simultaneously. At present, the olefin-decreasing catalyst will both reduce olefin and octane ratio in gasoline, so FCC catalyst with modified β-zeolite will play an important role to solve this problem. Furthermore, for some dismutation reaction such as toluene, dimethyl benzene, C9 and transalkylation reaction, β-zeolite has excellent stability and selectivity.

In fine chemical industry, β-zeolite has already been used both in the alkylation of propene to isopropyl-benzene and ethane to ethylbenzene. We've successfully developed dehydration and deammonia catalyst on the basis of β-zeolite, it has a very good activity and selectivity during dehydration and deammonia reaction.

Technical specification(TDS)

Item/Type No.

SiO2/Al2O3 ratio

Specific Surface m2/g

LOI %

Na2O %

N-hexane adsorption capacity mg/g

JZBT160

25

≥600

≤25

≤0.05

≥130

JZBT161

40

≥560

≤25

≤0.05

≥130

JZBT162

50

≥560

≤25

≤0.05

≥130

JZBT163

500

≥500

≤25

≤0.05

≥130

JZBT164

≥1000

≥440

≤25

≤0.05

≥110

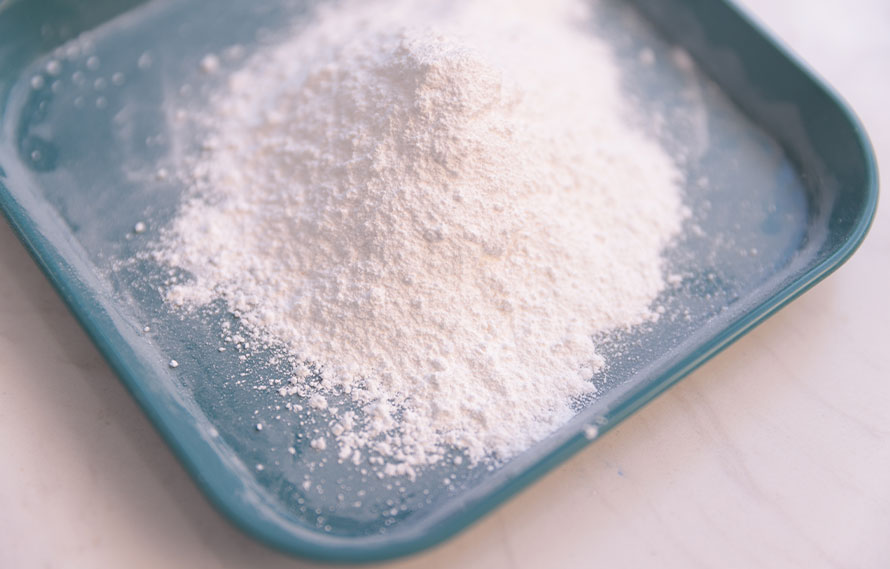

Appearance:white powder
Packagewoven bag with inner plastic bag, 25kg/bag or 500kg/bag.

Transportation: non-dangerous goods, but to avoid moisture during transportation, keep dry&sealed.

Storage: store in dry and ventilated place, not in the open air.
